Description
Microscope L-0970 (Preloved) Atau Second
The L-0970 is a operation microscopes with user friendly features, wide range of expand-ability, and high quality optics. The ergonomic design of L-0970 provides a clear and detailed illumination and observations for patients eye.
The L-0970 provides a motorized powered focus with measurements that can be taken directly on screen, and an automatic report can be generated with all the image and measurement data.
Features
Microscope
| MICROSCOPE HEAD TYPE | Galilean Type Binocular Microscope |
| MAGNIFICATION CHANGER | Continuous zoom bry drum rotation |
| EYE PIECE | 12x wide field high eye point with helicodial diopter adjustments |
| MAGNIFICATION RATIO | 4x, 6x, 10x, 16x, 25x |
| FIELD OF VIEW | φ72 ~ 11mm |
| PUPILARY ADJUSTMENT | 50 ~ 75mm |
| OBJECTIVE LENS | F=250mm |
| DIOPTER ADJUSTMENT | -6D – ±6D |
| WEIGHT | 67kgs |
| DIMENSIONS | 1090mm x 470mm |

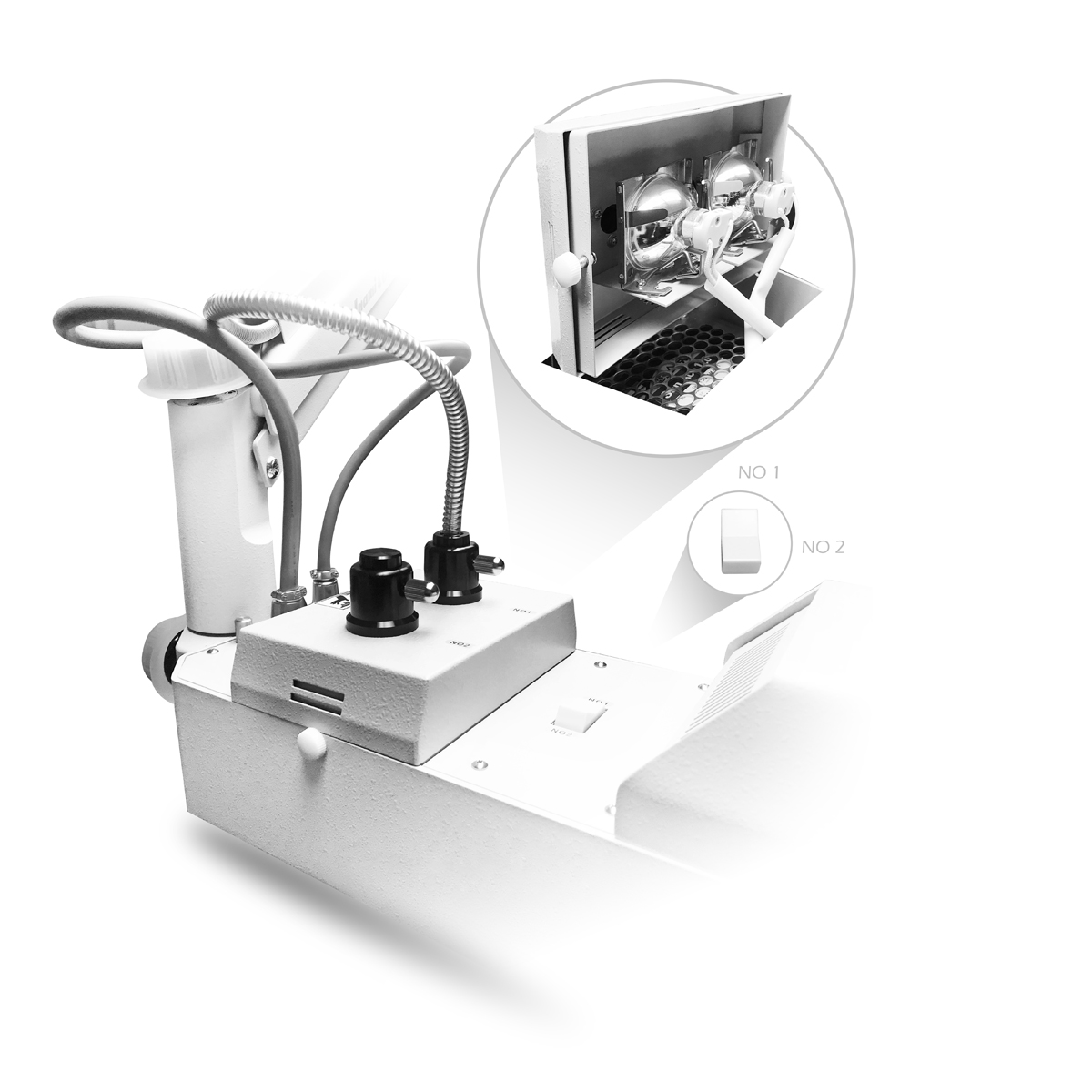

Illumination
| FILTERS | Retina Protection, Red-Free, Bulb color |
| LIGHT SOURCE | Halogen: Lamp Bulb 12V 150W (L016H1) |
| MAX INTENSITY | 80,000 Lux |
Focal Adjustment
| TYPE | Motorized |
| ADJUSTABLE DISTANCE | 40mm |
| FOCUSING SPEED | 1.3mm / sec |
Head Inclination
| HEAD INCLINATION ANGLE | 0 ~ 90° |
| HEAD SWING ANGLE | Left to Right -30° ±30° |
Power Supply
| INPUT VOLTAGE | AC100 ~ 240V |
| POWER CONSUMPTION | 50VA |
Optional Accessories
Download Manual Book : Klik Disini
